W.B.N.:
Wehrmachts Befehlshaber in den Niederlanden: |
|
This sector of the Atlantikwall north of the isle of Walcheren all the way to the border of
Germany in the north of the Netherlands was the responsibility of the 'Wehrmachts
Befehlshaber in den Niederlanden', H.Q. Hilversum. Mark the different ways
in numbering in the various sectors of the Atlantikwall, complexes from
north to south. |
 |
|

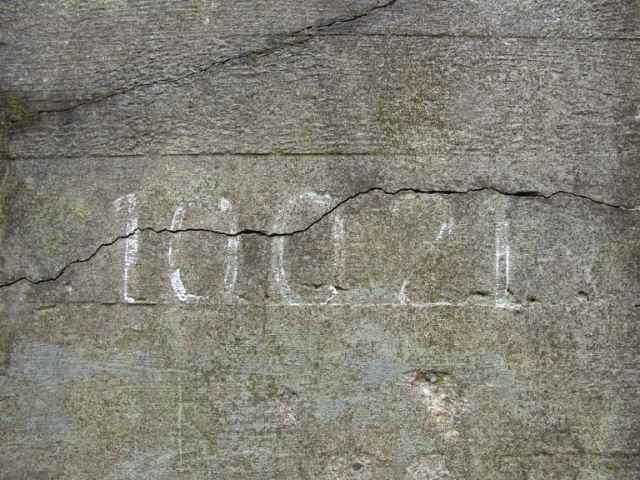

10021 |
| this
is the Bau nr. of the bunker |
|
 |
| Inside
a Vf bunker, Marine-Flakbatterie Den Hoorn, St.Gr. Texel, NL,
05-2005 |
| Inside
a groupbunker 'R 502 Doppelgruppen unterstand', Wn 95, Landfront
Festung IJmuiden, 2003 |
photo: LJdV |
|
|
|
 |
|
 |
|

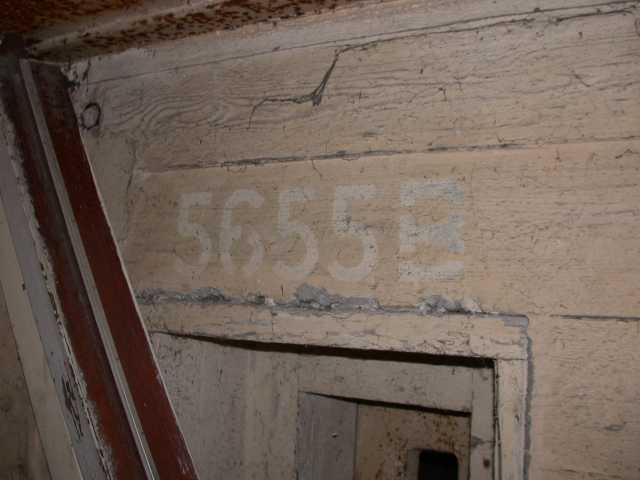

Inside a Vf bunker, Wijk aan Zee, Festung IJmuiden, 06-2006 |
|
photo: LJdV |
|
Inside
Vf groupbunker, Wijk-aan-Zee, Festung IJmuiden, NL, 05-2005 |
|
|
|
 |
|
 |
|
Inside a groupbunker M 151, Wn 63 Wijk aan Zee, Festung
IJmuiden, NL, 07-2005 |
|
photo: LJdV |
|
Inside a groupbunker M 151, Wn 63 Wijk aan Zee, Festung
IJmuiden, NL, 07-2005 |
|
photo: LJdV |
|
|
|
 |
|
 |
| Inside
Vf groupbunker, M-151, Wijk-aan-Zee, Festung IJmuiden, NL |
|
photo: HBP |
|
Inside an ammunition bunker Fl 246 Batt. Olmen, Festung
IJmuiden, NL, 2006 |
|
photo: LJdV |
|
|
|
 |
|
 |
| Inside
a groupbunker R-501, Bp 84, Festung IJmuiden,
NL, 2010 |
|
Inside a groupbunker R-621, Bp 84, Festung
IJmuiden, NL, 2010 |
|
|
|
 |
|
 |
|
Inside
a group bunker R-635, Kernwerk Festung IJmuiden, NL, 12-2004 |
|
Inside
a bunker of a complex in Zandvoort, NL |
|
photo: |
|
|
|
 |
|
 |
|
Inside a groupbunker M 151, Wn 142 Seezielbatterie
Langerak, NL, 07-2005 |
|
photo: LJdV |
|

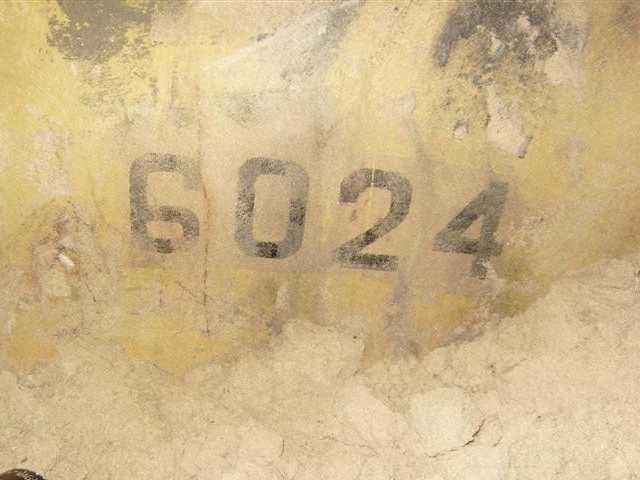

Inside
a S449 Peilstand, Bloemendaal aan Zee, NL, 04-2005 |
|
photo: LJdV |
|
|
|
 |
|
|
Inside a Küver bunker, Bloemendaal aan Zee,
NL |
|
photo:
ES |
|
 |
|
 |

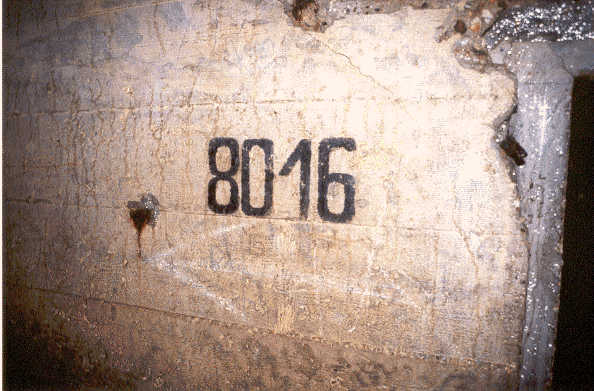

At the
entrance to observationpost, Stp. XXXVIIH, Wassenaar, NL, 07-2001 |
| Entrance
to an anti-tank bunker 'R 625 Schartenstand für 7.5 cm Pak', 'Stp.Gr. Scheveningen', Den
Haag, NL, 05-2001 |
|
14-8734 |
|
Baupunkt 237, Baunumber 8734 |
|
 |
|
the old EH and new numbering combined, even the type of
bunker indicated! rare! |
|

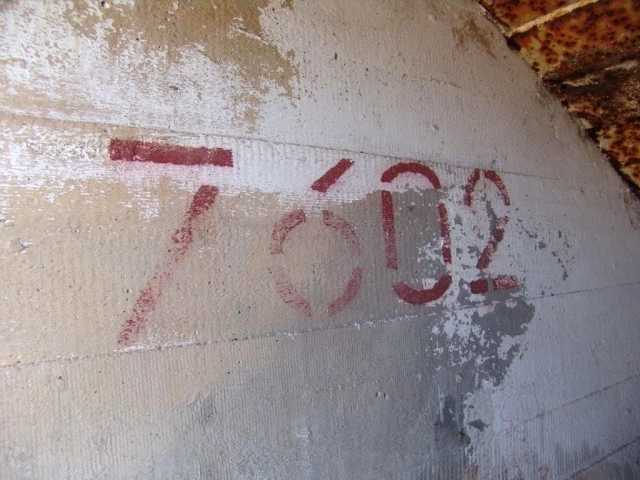

7602 |
|
 |
|

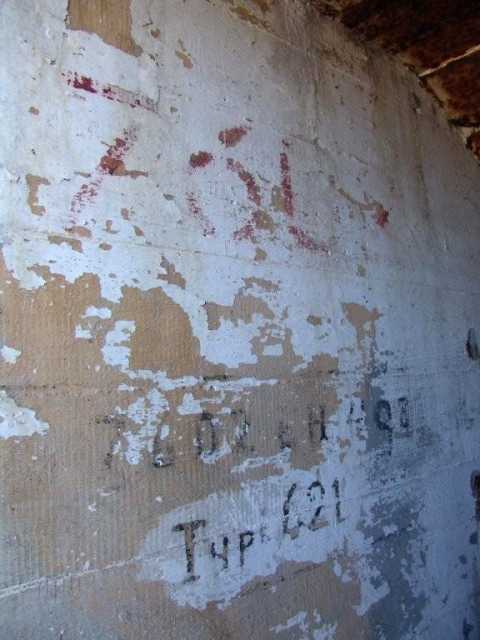

Inside a groupbunker R 621, Wn 31 M, Festung
Hoek van Holland, NL, 01-2009 |
|
 |

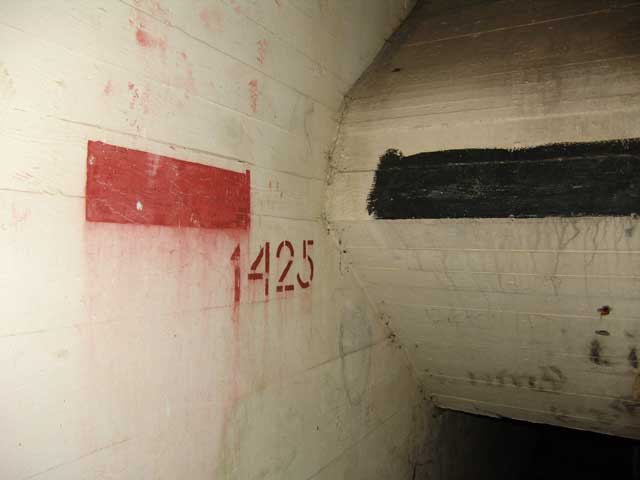

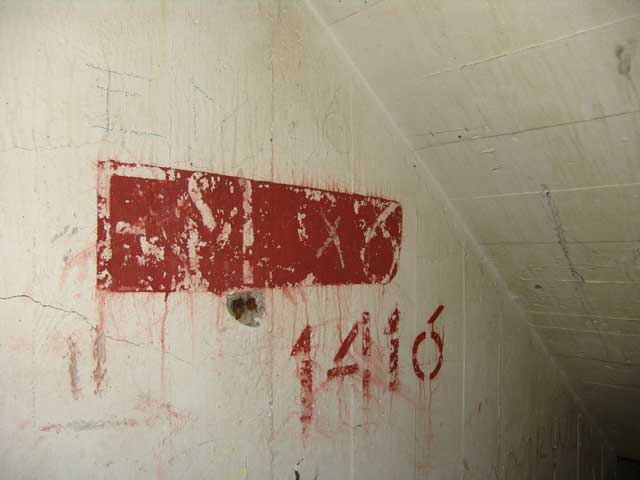

| EM
(sector E, Kriegsmarine) All bunkers were re-numbered with red paint but with the same numbers |
|
1422 |
|
|
|

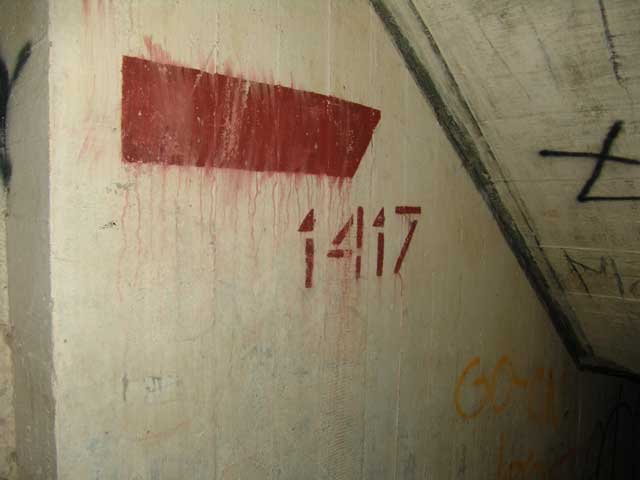

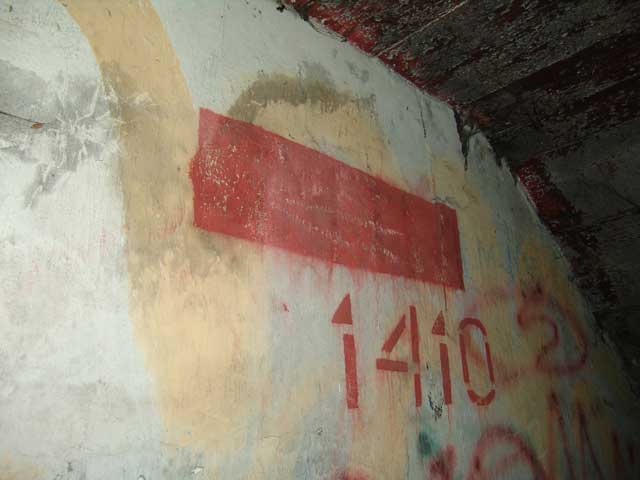

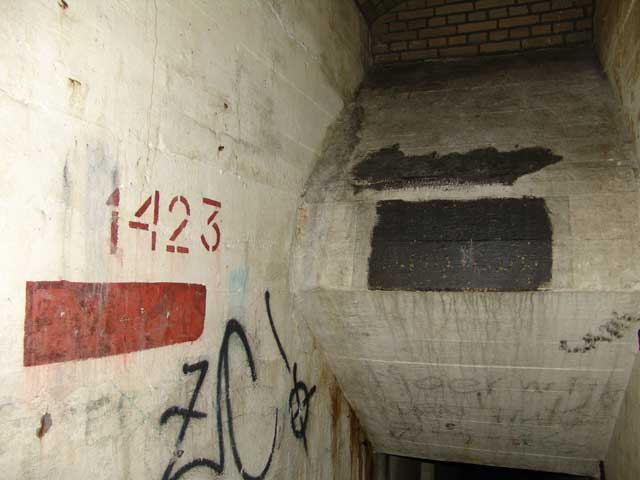

Inside some
groupbunkers Festung Hoek van Holland, NL,
10-2003/11-2004 |
|
 |
 |
 |
 |
 |
 |
 |
|
 |
|
again
the switch between the old EM/EH and new numbers |
|
8702 E.H.
499 |
8702 |
|
501 |
|
|
Inside
a groupbunker R-501, Wn 53H, 's Gravenzande, Landfront Festung
Hoek van Holland, 11-2004 |
|
 |
|
|
Inside
a groupbunker R-502, Wn 51H, 's Gravenzande, Landfront Festung
Hoek van Holland, 11-2004 |
|
 |
 |
|

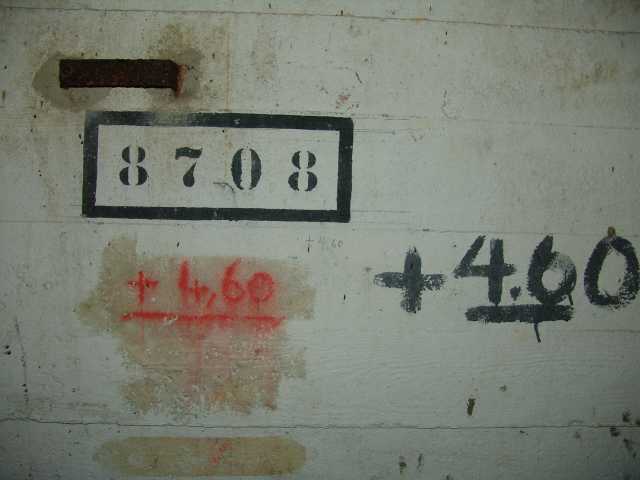

8708 |
|
mark
the post war +4,60 (?) indicated 3 times! |
|
1902 |
|
|
Inside
bunker R-676 Wn 51H and a R-667c Wn 43H, Festung
Hoek van Holland, 11-2004 |
|
 |
|
|
Inside an ammunition bunker R 134, Wn 46 H, Festung Hoek
van Holland, NL, 06-2006 |
|
 |
type
621, baupunkt 98,
bunker 01
|
Entrance to a groupbunker 'R 621 Gruppenunterstand', 'Stp.Gr. Moerdijk', NL,
05-2002 |
photo: AvB |
|
 |
 |
 |
|

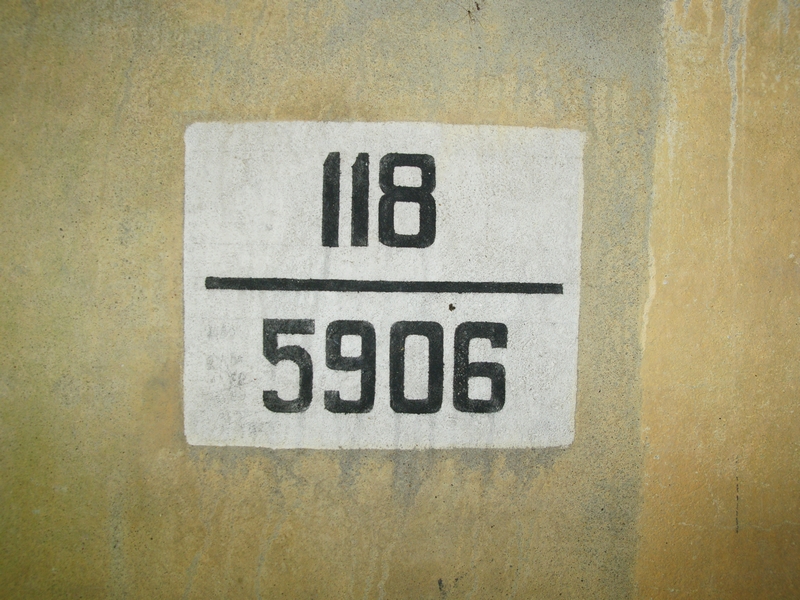

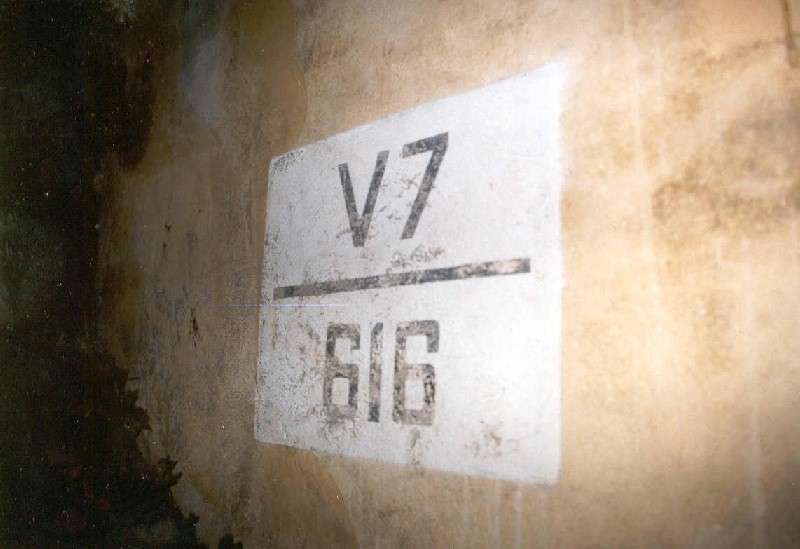

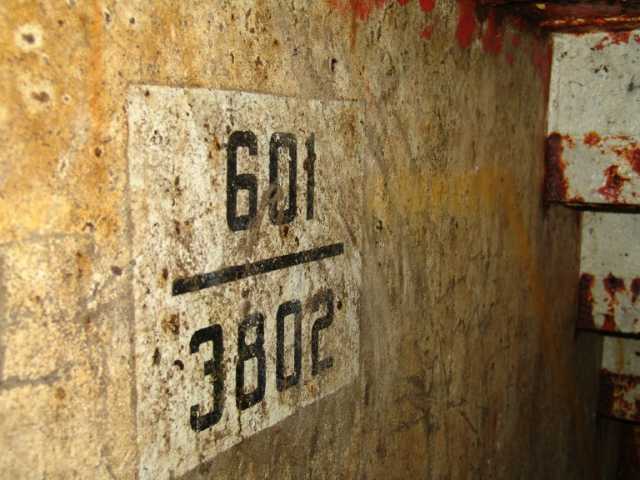

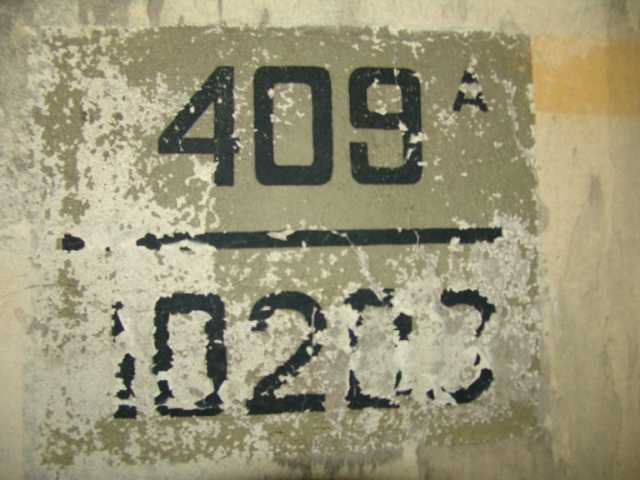

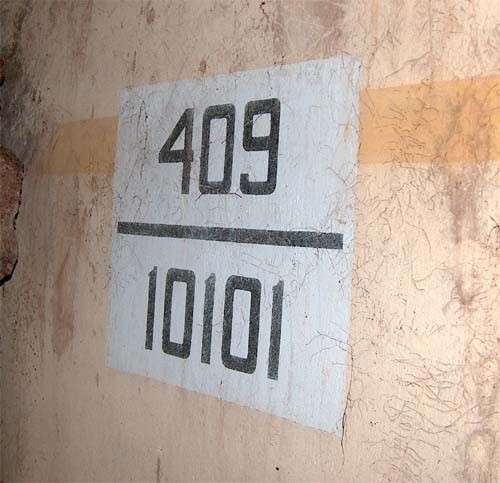

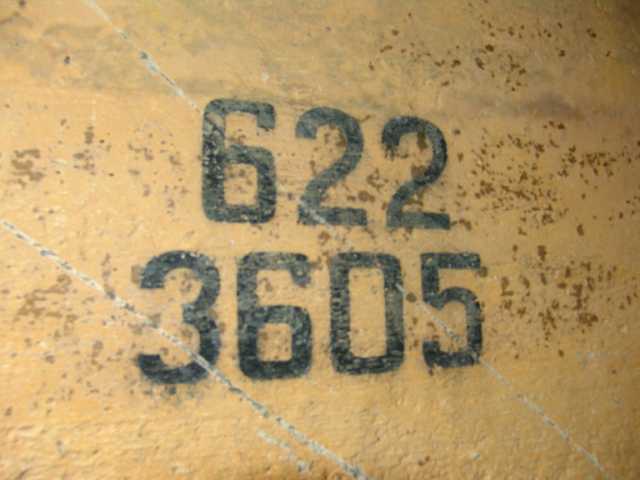

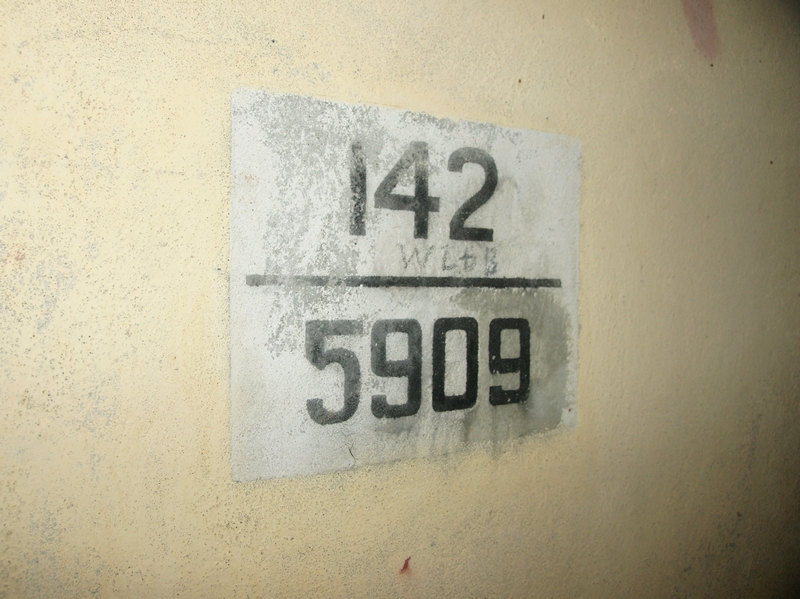

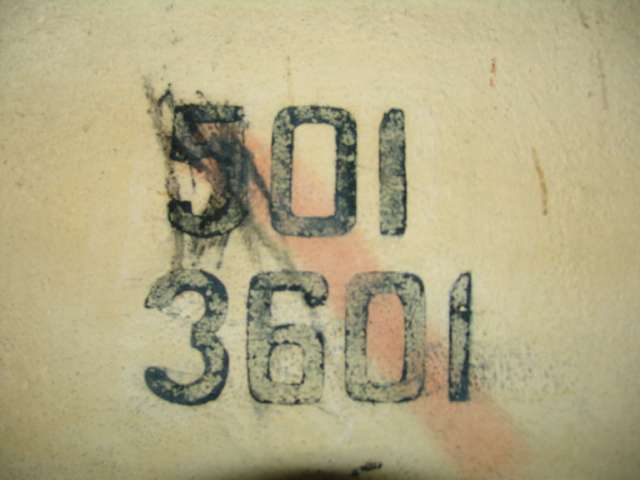

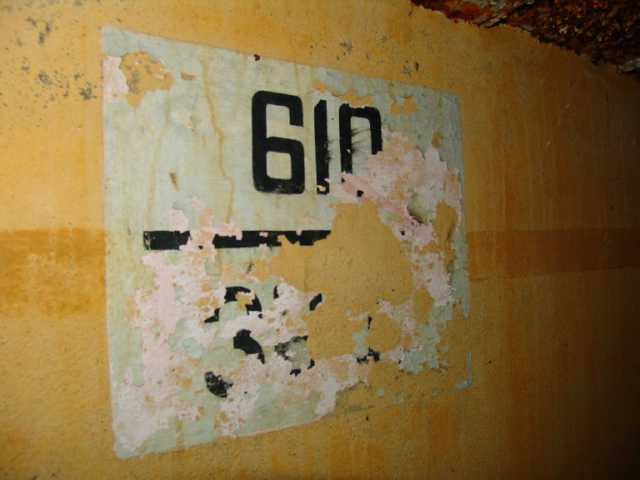

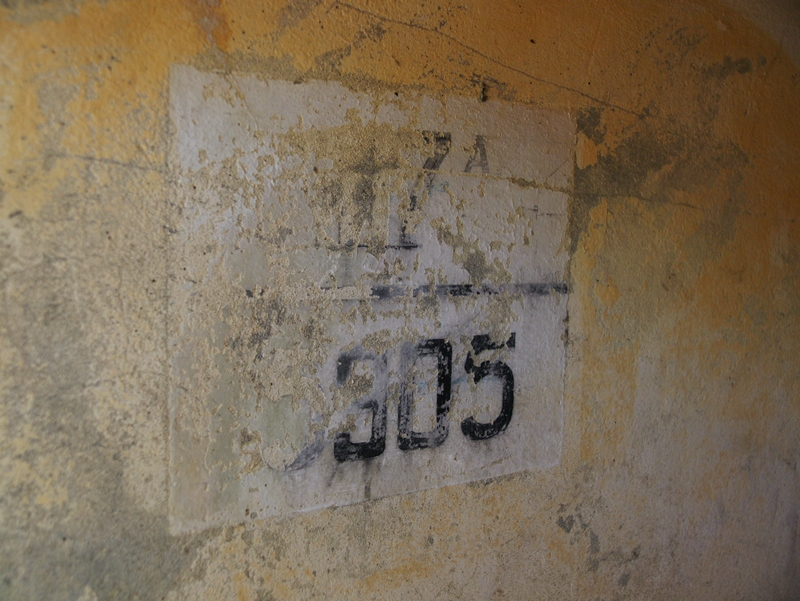

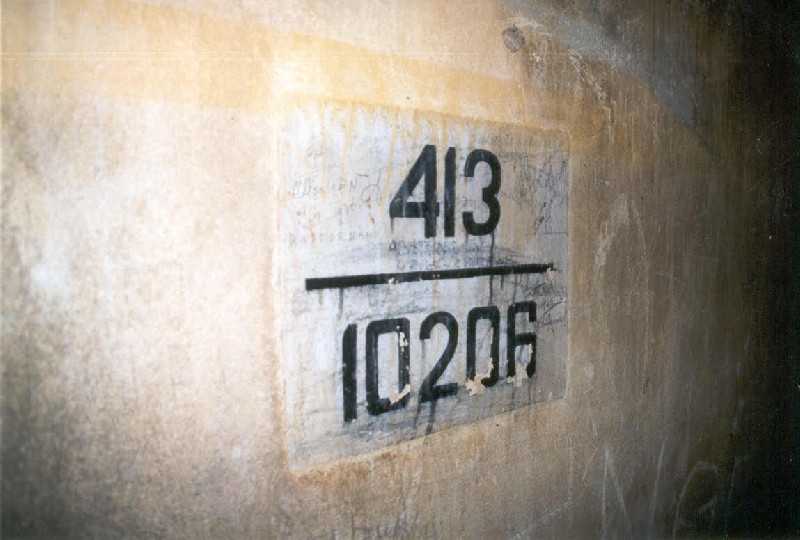

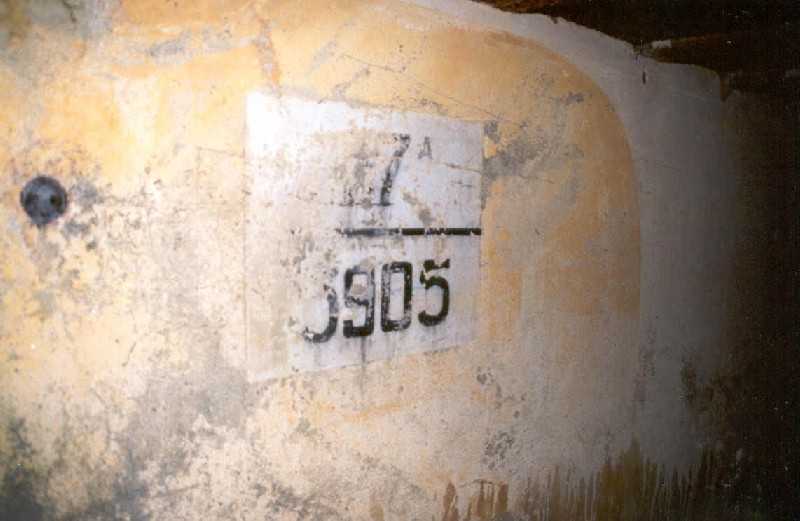

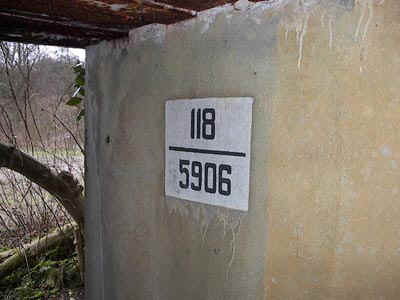

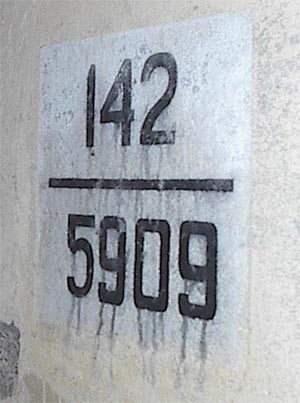

Some more examples from different complexes around
Oostvoorne, NL, 03-2002, 03-2005,
05-2012 |
|
photo's:
AvB and author |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

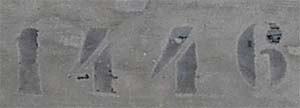

the number was not always on a white background,
these numbers were just painted onto the wall directly |
 |
 |

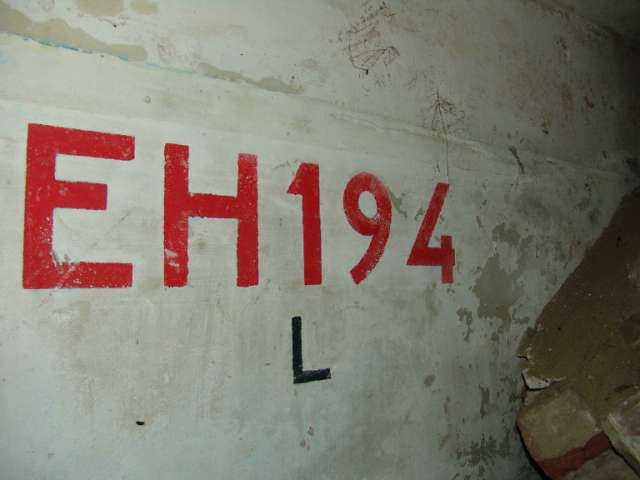

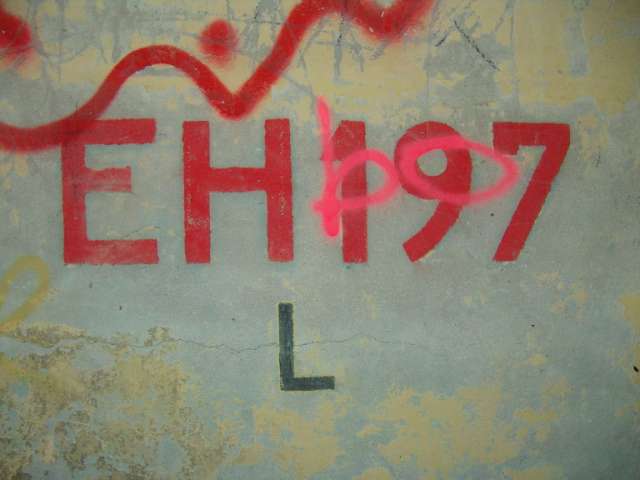

The
Dutch coast from north to south was divided in the sectors A,
B,
C, D
and E
being the first letter of the code. The bunkers in Hoek van Holland and
Oostvoorne all have the E numbers. H
stands for Heer (L=Luftwaffe, M=Kriegsmarine). This system seems to
originate from the 'Neue Westwall' period, after which
during the construction of the AW St program the Heer and
Kriegsmarine used the new system, the Luftwaffe seemed to
continue with the old numbering. |
 |
 |
 |

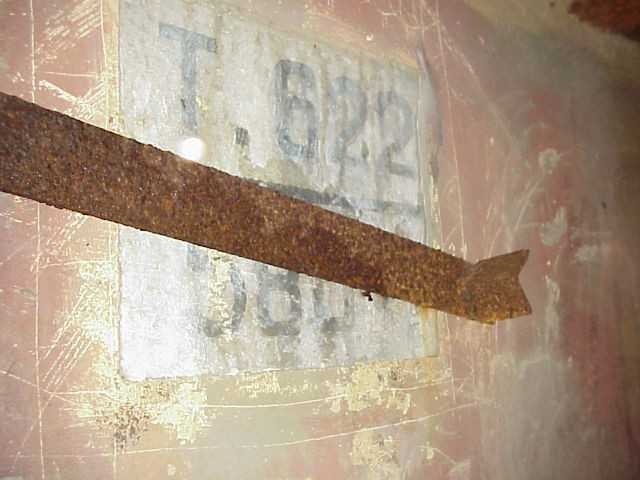

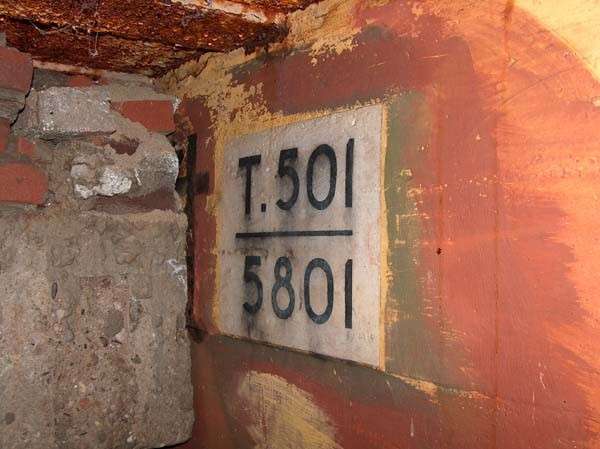

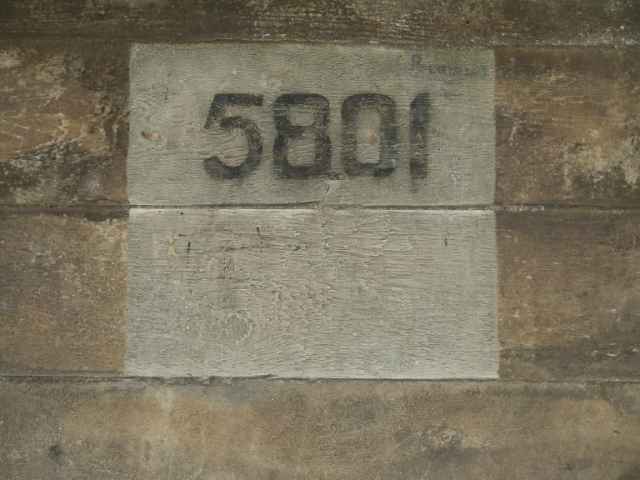

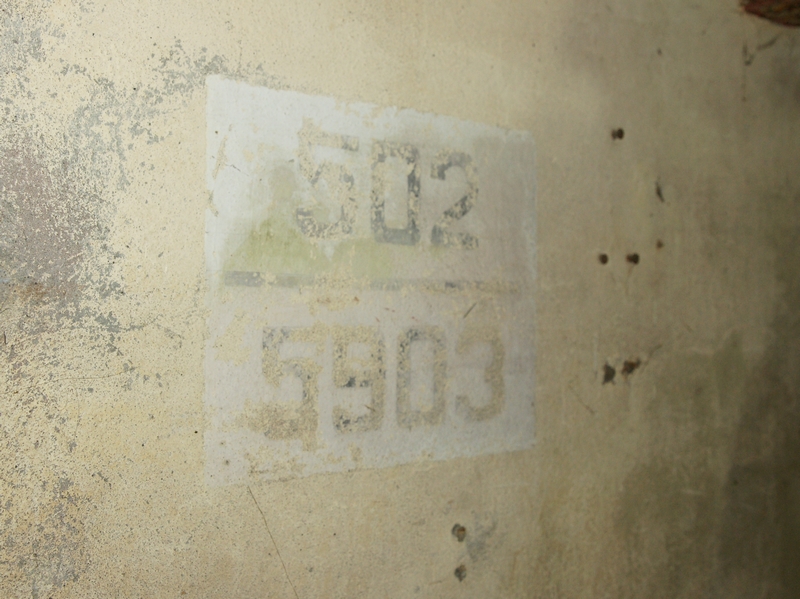

Inside some bunkers, R-501 and R-622, Wn 104 H 'Heesterhof', Stp.
Gr. Oostvoorne, NL, 11-2002.
The 'T' stands
for Type. This addition can only be found on this
complex.
|

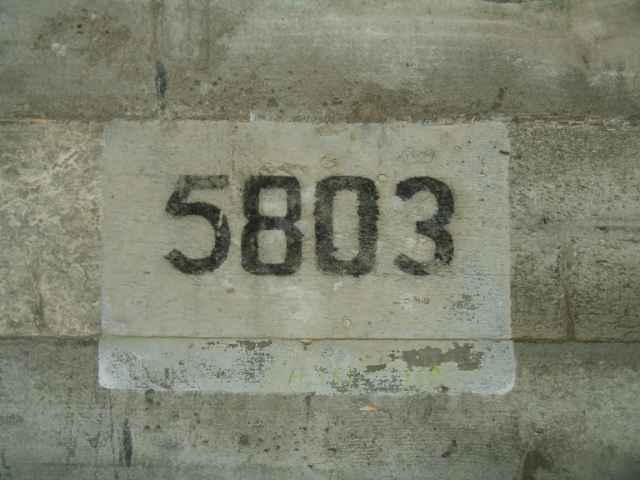

5803 photo
AvB |
|
|
|
|
|
|
|
 |
 |
 |
 |
|

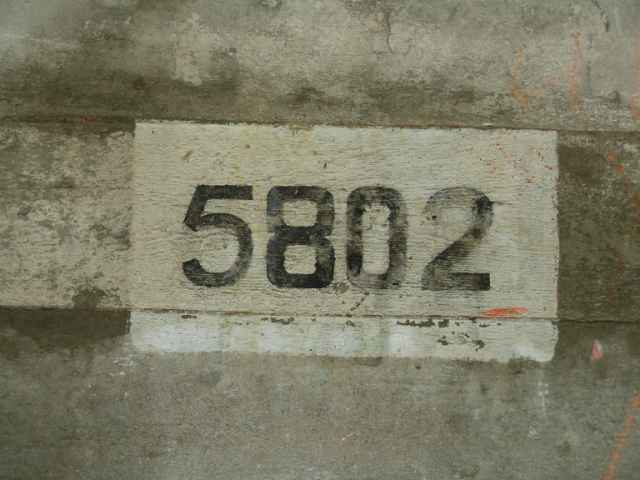

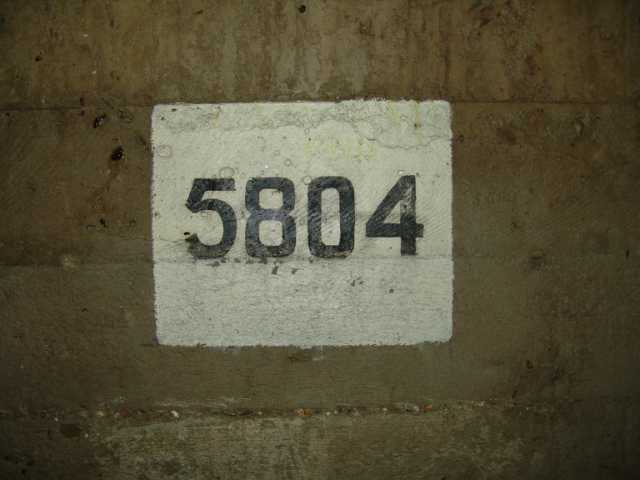

Numbers
inside several Tobruks on the same complex, 03-2005 |
|
 |

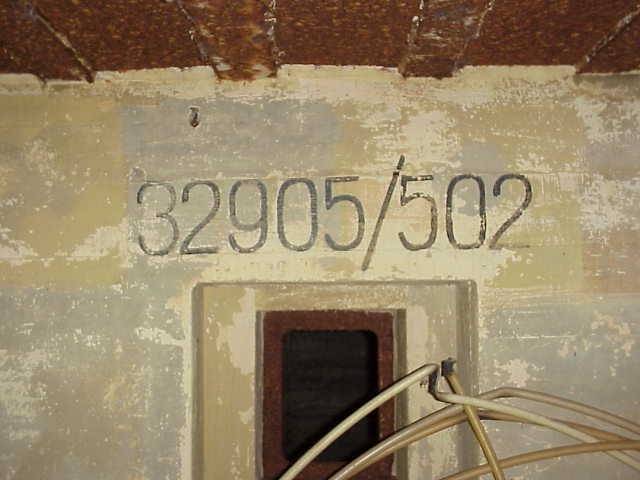

32905/502 |
|
K.V.A Dordrecht', Stützpunktgruppe Schouwen, Nr.'Widerstandskern'
or 'Baupunkt' 329, bunker nr. 05, type R 502 |
' |
 |
|

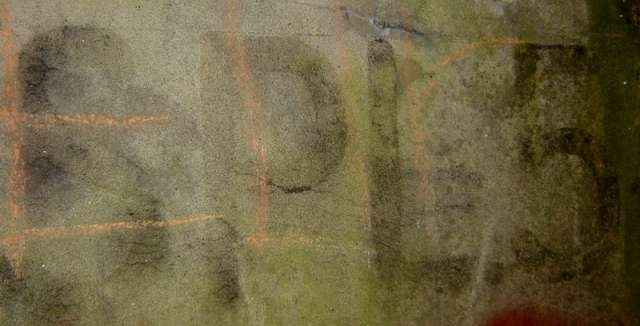

SPL5 |
|
SPlittersicher
Luftwaffe (?) 5 |
|
Entrance
to a twin group bunker R 502 Stp.Gr. Schouwen, Slotbos,
Haamstede, NL, 01-2001 |
|
Inside a shelter near the former German mil. airport,
Stp.Gr. Schouwen, Haamstede, NL |
|
photo: HA |
|
 |
F.L. = FLAK 32 |
 |
|

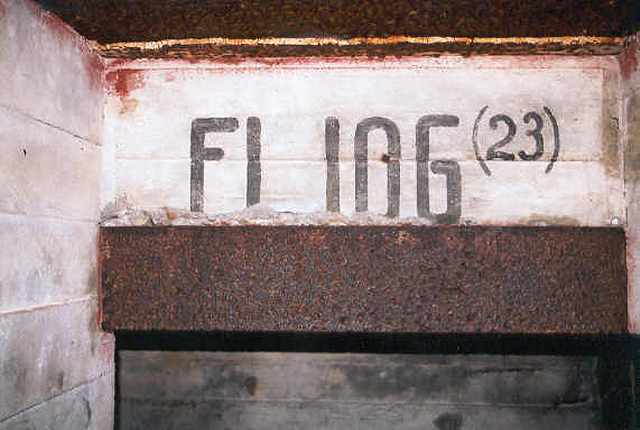

FL 106
|
(23) |
|
rather unusual
way of numbering, it's in the same baupunkt as the picture below
|
|
| Inside
a Vf bunker on a former German airfield somewhere on the AW in the
Netherlands, 03-2003
|
|
photo's:
PA |
In the entrance to a R 501, 'Wn' 316 LH, Stp.Gr. Schouwen near Haamstede, NL, 07-2002 |
|
 |

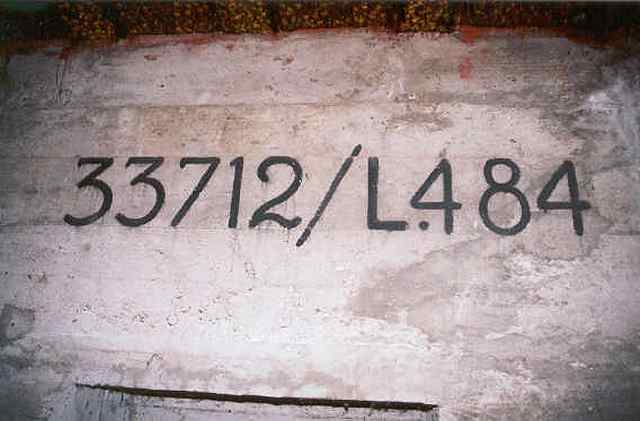

| 33712/L.484 |
| baupunkt 337,
bunker 12, type L 484 |
|
 |
|
In the entrance to a radio bunker L 484
'W.N.' 316 LH, Stp.Gr. Schouwen near Haamstede, NL, 07-2002 |
|

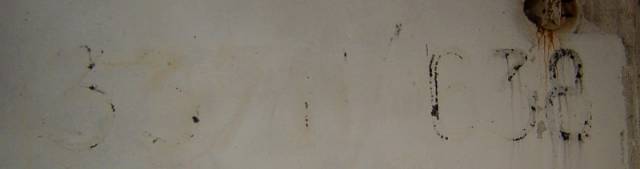

Inside a R-638 small dressing station, Stp.Gr. Schouwen, Haamstede, NL |
| photo: HA |
|
